ToggleWhen it comes to manufacturing 0.68mm micro copper components, ordinary machining falls short. The micron-scale size demands uncompromising precision, where even the slightest tool deflection, vibration, or temperature shift can render a part useless. At Jingxinda (Xiamen) Precision Technology Co., Ltd. (JXD Machining), we’ve spent decades mastering the art of micro copper machining—combining advanced technical capabilities with industry-leading equipment to deliver parts that meet the most stringent tolerances. Below, we break down the technical challenges, our specialized solutions, real-world applications, and why Jingxinda is the trusted partner for high-tech industries worldwide.
The Technical Challenge: Why 0.68mm Micro Copper Machining Is Unique
Copper’s excellent electrical and thermal conductivity makes it ideal for micro-components, but its softness and the 0.68mm size amplify three critical challenges:
- Ultra-tight tolerances: Micro copper parts require tolerances as fine as ±0.0001” (≈2.5µm) to function in precision systems. For a 0.68mm feature, a 0.01mm error is catastrophic—making dimensional control non-negotiable.
- Micro-scale defects: Burr formation, tool wear, and thermal expansion are magnified at this size. Standard tools and workholding cause deflection, while temperature fluctuations warp copper, ruining accuracy.
- Process stability: High-volume production demands repeatability. Even minor variations in cutting parameters or tool alignment can lead to scrap rates that derail projects.
At Jingxinda, we’ve engineered our processes to address these challenges head-on—turning technical hurdles into competitive advantages.
Jingxinda’s Technical Solution: Swiss-Type CNC Lathes & Escomatic Machines
To produce 0.68mm micro copper parts with consistent precision, we rely on specialized machining equipment originally developed for watchmaking (an industry built on ultra-small, intricate components). This technology is the cornerstone of our ability to hold ±0.005mm tolerances and eliminate secondary processing.
1. Swiss-Type CNC Lathes: The Gold Standard for Micro Precision
Our workshop is equipped with state-of-the-art Swiss-style (sliding-headstock) lathes from top brands like Citizen and Tornos. Here’s how they solve micro machining challenges:
- Guide bushing support: A close-fitting bushing clamps the copper bar stock directly at the cutting zone, eliminating deflection of the slender 0.68mm workpiece—even under high cutting forces.
- Multi-operation efficiency: Multiple tooling stations (turning, drilling, milling, tapping) work simultaneously in one setup, completing complex shapes (e.g., micro pins, RF connector sleeves) in a single cycle.
- Micron-level accuracy: These machines achieve tolerances as tight as ±2.5µm, ensuring parts are “production-ready” right off the lathe—no grinding or finishing required.
2. Escomatic Machines: High-Volume Precision at Scale
For large-batch orders, we deploy Escomatic (cam-driven screw) machines—purpose-built for cost-efficient, high-volume micro copper production:
- Consistent quality at speed: Escomatic machines maintain the same ±0.005mm tolerance as Swiss lathes while handling thousands of parts per day.
- Reduced waste: Automated tool alignment and feed control minimize scrap, critical for meeting tight deadlines without compromising quality.
By combining these two technologies, Jingxinda delivers 0.68mm micro copper parts in a single setup—cutting lead times by 30% and ensuring uniformity across every unit.
Technical Expertise: The Jingxinda Difference
Machinery alone isn’t enough—micro copper machining requires specialized knowledge that only decades of experience can build. Our team of veteran machinists and engineers brings three key technical advantages:
1. Tooling Optimization
We use ultra-small carbide and diamond tools tailored to copper’s properties. Unlike standard tools, these materials resist wear during long runs and produce clean, burr-free cuts—essential for 0.68mm features. Our team selects tool grades based on part geometry and volume, ensuring optimal performance.
2. Process Control & Calibration
- Environmental stability: Our workshop maintains constant temperature (±1°C) and vibration isolation to counter copper’s thermal expansion and tool deflection.
- Real-time monitoring: Cutting parameters (speed, feed, depth) are finely tuned and monitored in real time. Automatic tool wear compensation adjusts for degradation, keeping parts within spec.
- ISO/AS-certified quality systems: We follow strict quality protocols to guarantee consistency, with every batch tracked from raw material to shipment.
3. Micro-Inspection Capabilities
To verify 0.68mm parts meet tolerances, we use industry-leading inspection tools:
- Optical microscopes for surface finish and burr checks

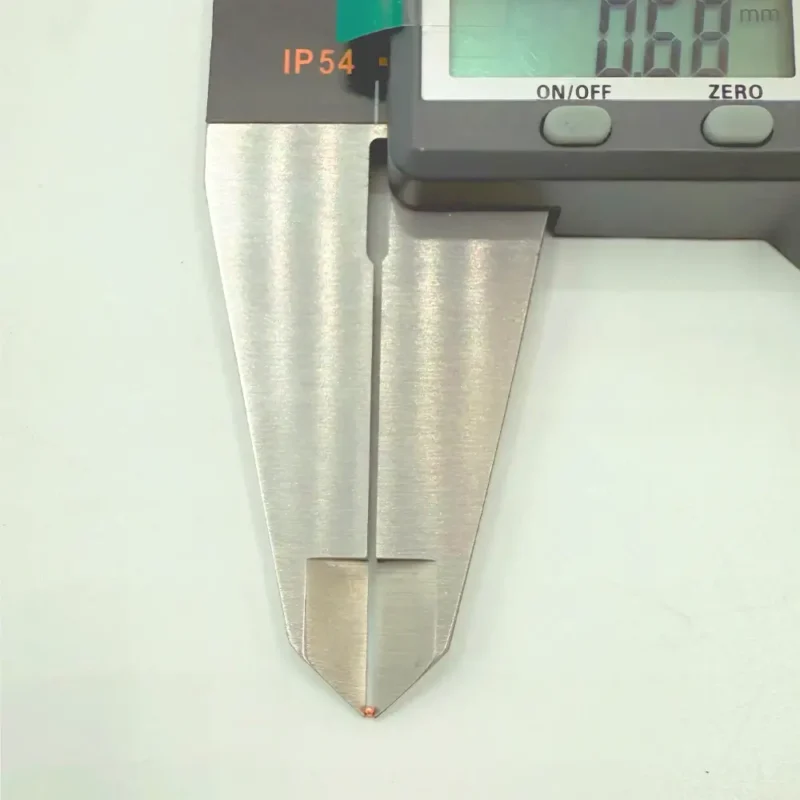

- Digital calipers with 0.001mm resolution
- Coordinate Measuring Machines (CMMs) for 3D dimensional verification
Every part undergoes multiple inspection stages—no component leaves our facility without passing rigorous testing.
Applications: Where Jingxinda’s Micro Copper Parts Power Innovation
Our 0.68mm micro copper components leverage copper’s conductivity and our precision to serve critical industries:
| Industry | Applications |
|---|---|
| Electronics | Miniature terminals, RF connectors, micro-contacts for telecom/instrumentation |
| Medical Devices | Fine nozzles for diagnostics, sensor contacts for surgical tools (coated for biocompatibility) |
| Automotive/Sensors | Conductive elements for pressure/temperature sensors, micromechanical switches |
| Watches/Instruments | Ultra-small gears, pins, and connectors requiring tight mechanical tolerances |
From powering 5G devices to enabling precise medical diagnostics, Jingxinda’s micro copper parts are the backbone of next-generation technology.
Why Partner with Jingxinda for Your Micro Copper Project?
At Jingxinda, we don’t just machine parts—we deliver technical confidence for your most demanding applications. Here’s what sets us apart:
- Decades of micro machining expertise: We’ve specialized in Swiss-type and Escomatic machining since our founding, with a track record of solving complex micro-copper challenges.
- Flexible production: We support prototypes, small batches (100–1,000 units), and mass production (10,000+ units)—scaling to your project’s needs.
- Global reliability: Our ISO/AS certifications and strict quality control make us a trusted supplier for industries worldwide, from aerospace to consumer electronics.
- End-to-end support: From design optimization to post-production inspection, our team partners with you to reduce costs and accelerate time-to-market.
Ready to Turn Your Micro Copper Design into Reality?
If you need 0.68mm micro copper parts with micron-level precision, Jingxinda has the technology, expertise, and quality commitment to deliver. Let our team leverage decades of Swiss-type machining experience to bring your design to life—on time and within spec.
Contact Jingxinda today for a custom quote and discover why we’re the leader in micro copper precision.
