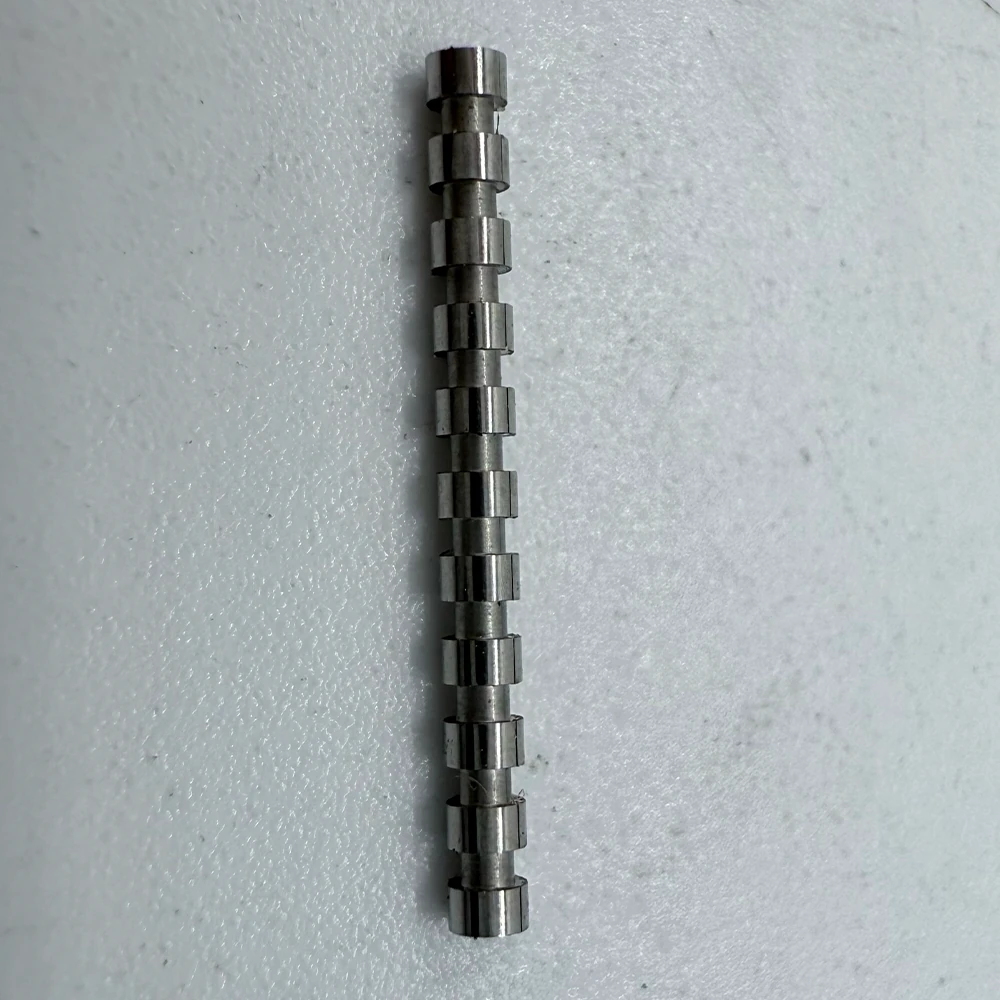

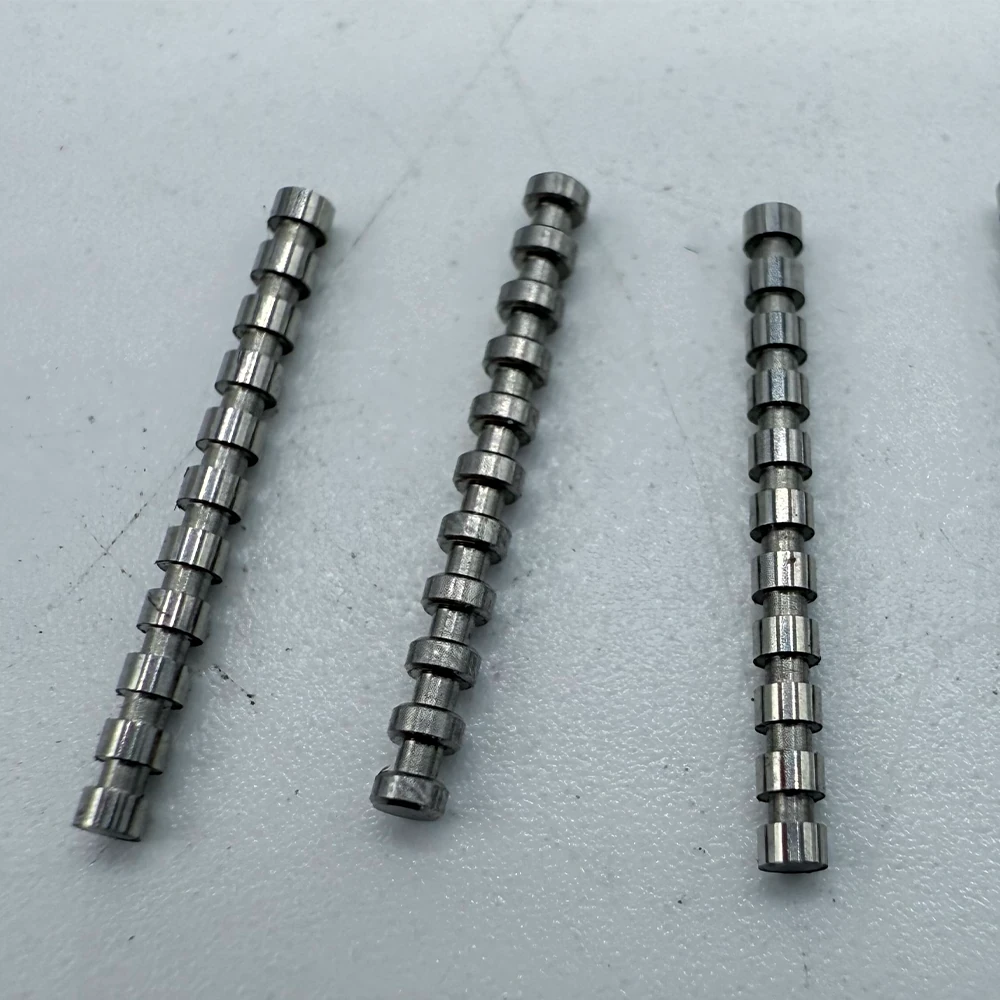

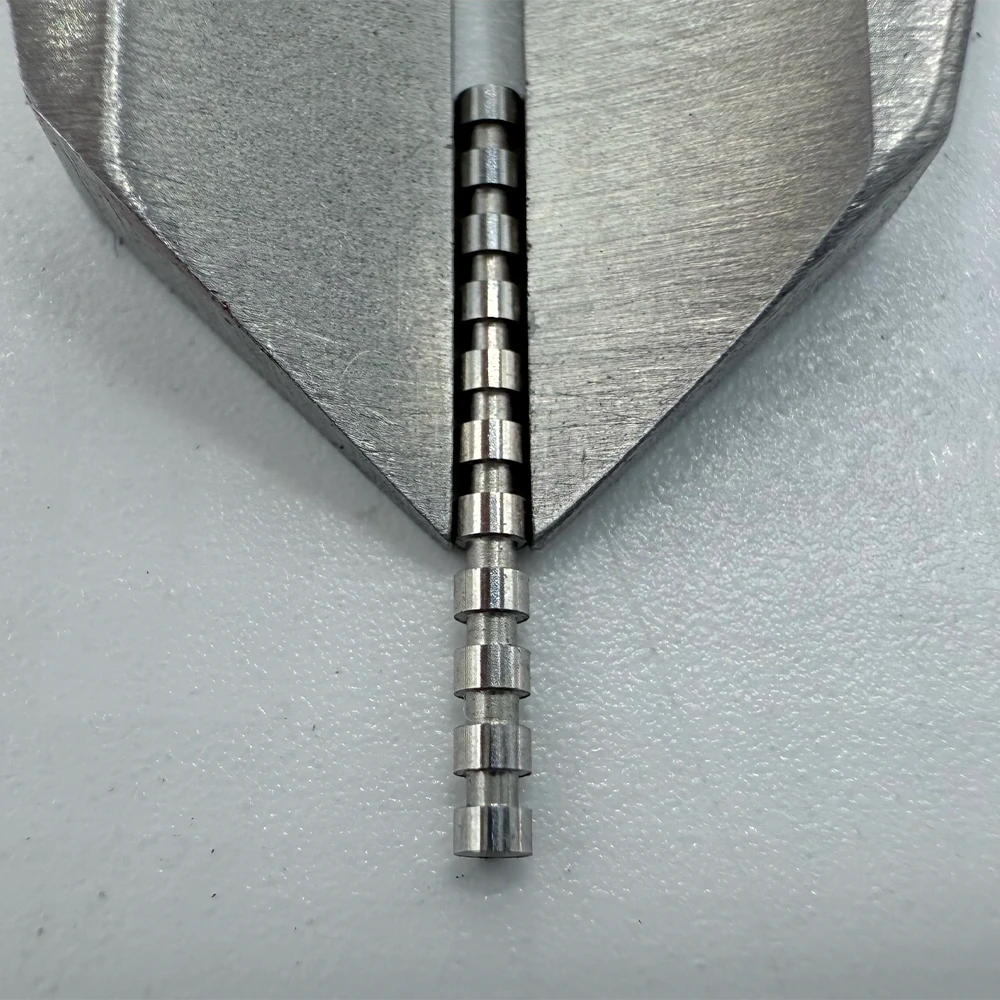

These Swiss-type lathe machined multi-step precision shafts are engineered for critical roles in industrial equipment—serving as transmission, alignment, or structural components where multi-diameter accuracy directly impacts system performance. Produced via single-setup Swiss turning (a process renowned for eliminating secondary operation errors), each shaft features precisely machined steps, grooves, and diameters to enable seamless integration with gears, bearings, or housings.

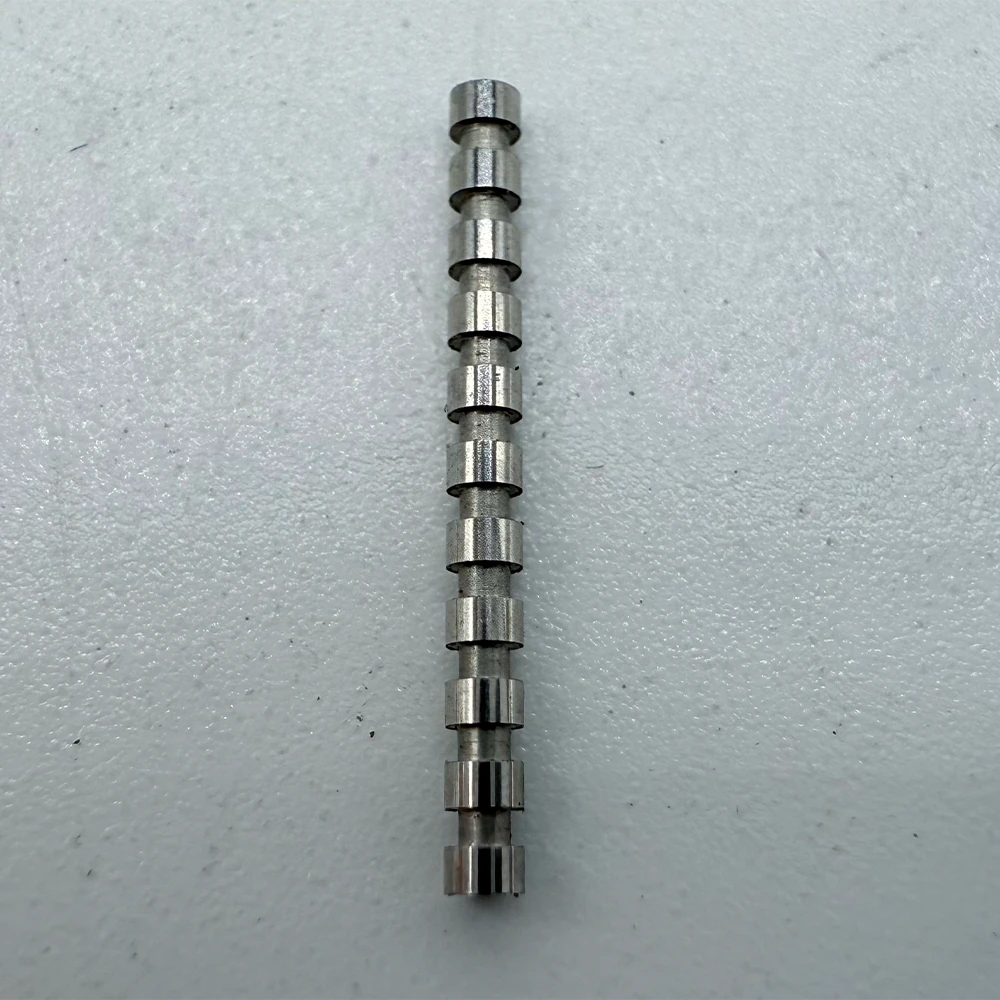

Crafted from high-grade materials like corrosion-resistant stainless steel (304/316) or lightweight aluminum alloy (6061/7075), the shafts offer customizable lengths (5mm–150mm) and diameters (0.5mm–20mm), with a strict tolerance of ±0.005mm. Surface treatments enhance functionality: passivation boosts rust resistance for shafts in humid industrial environments, while polishing ensures ultra-smooth surfaces to minimize friction in high-speed transmission applications.
Widely adopted across industries:
·Automotive: As precision linkages in transmission systems, where multi-step accuracy ensures gear meshing precision and reduces NVH (noise, vibration, harshness).
·Medical Devices: For tiny structural shafts in diagnostic equipment, meeting biocompatibility and micro-machining demands.
·Electronics: As alignment pins in automated assembly machinery, where dimensional consistency prevents component misalignment.

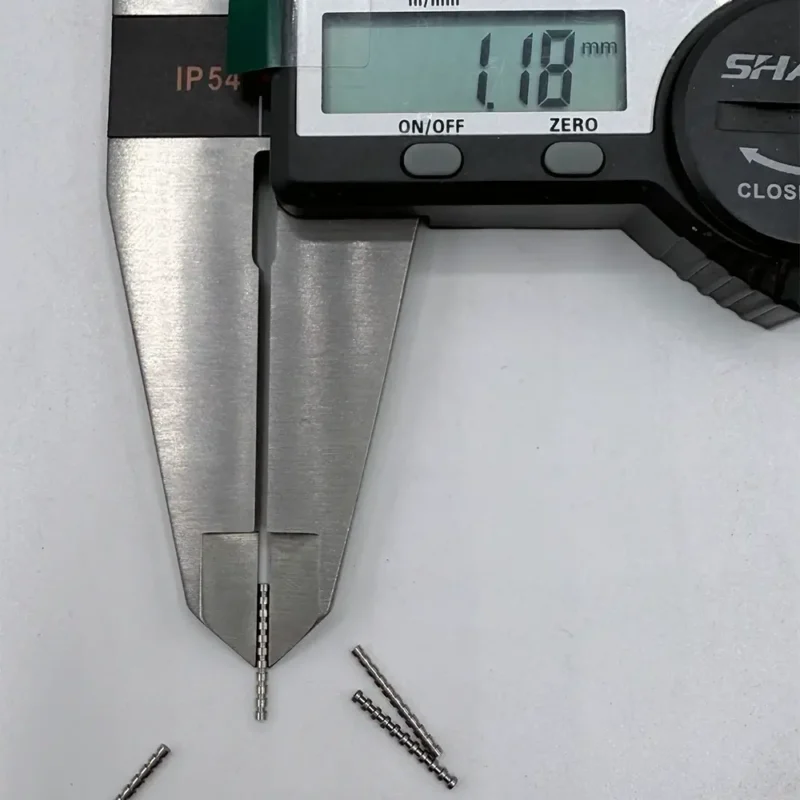

Key advantages include wear resistance (extending component lifespan by 30% vs. standard machined parts) and single-setup machining precision—each shaft’s multi-step geometry is completed in one operation, eliminating cumulative error. Backed by ISO 9001 certification, every batch undergoes 100% CMM inspection, with detailed dimensional reports provided for traceability.
Whether replacing worn shafts in legacy equipment or custom-designing shafts for new systems, these Swiss-turned multi-step precision shafts deliver the accuracy and reliability industrial procurement teams require. Our engineering team also offers DFM (Design for Manufacturability) consultation to optimize shaft geometry for Swiss lathe capabilities—ensuring both performance and efficient production.
Our CNC Machining Facilities & Capabilities
At JXD Machining, we operate a 5,000+ square meter fully integrated CNC machining facility, armed with a fleet of 40+ advanced pieces of equipment to meet diverse customization demands. Our core equipment lineup includes: 12 sets of 3-axis CNC milling centers (Haas VF-2), 8 sets of 4-axis machining centers (DMG MORI CMX 1100 V), 5 sets of high-precision 5-axis milling centers (MAZAK Variaxis i-700), 10 sets of CNC turning lathes (Okuma LT2000-MY), 3 sets of Swiss-type automatic lathes (Citizen M32), and a complete Surface Treatment line covering anodizing, sandblasting, and powder coating.
We excel in both flexible rapid prototyping and stable high-volume production: we support 1-50 pieces of rapid sampling and 10,000+ pieces of mass production, with the ability to process over 20Materialsincluding Aluminum(6061/7075), Stainless Steel(304/316), Titanium alloy (TC4),Brass, and engineering Plastics( POM/ PEEK). With a strict tolerance control range of ±0.005mm to ±0.05mm, we easily handle complex structures such as deep holes, curved surfaces, and multi-step components, serving key industries like Electronics, Medical devices, Consumer Products, and Industrial Automation.
On delivery efficiency, we balance speed and precision: rapid prototyping takes 3-5 working days, small-batch production (50-500 pieces) is completed in 7-10 working days, and large-volume orders are delivered within 15-25 working days (adjustable based on order scale and complexity).
Want to see our workshop layout, equipment, and production process? Click here for our “About Us” page.
Quality Assurance
At JXD Machining, our strict, streamlined quality & outbound process—backed by advanced tools—guarantees compliance:
Incoming Check: Verify raw material certificates + sample tests (hardness, composition) to rule out defects.
In-Process Inspection: Spot-check critical stages with CMMs to validate tolerances (±0.001mm) early.
100% Final Test: Full dimensional, surface roughness, and functional checks—only passers move forward.
Outbound Review: Secure packaging + batch labeling; test reports/certifications included for traceability.
Every component leaves ready to meet your standards. Learn more & view certificates → Click here
